Chamber

Home / Products / Brake&Wheel / Brake Chamber / Chamber / 30102010 T24/30 Spring Brake Chamber 75/75mm

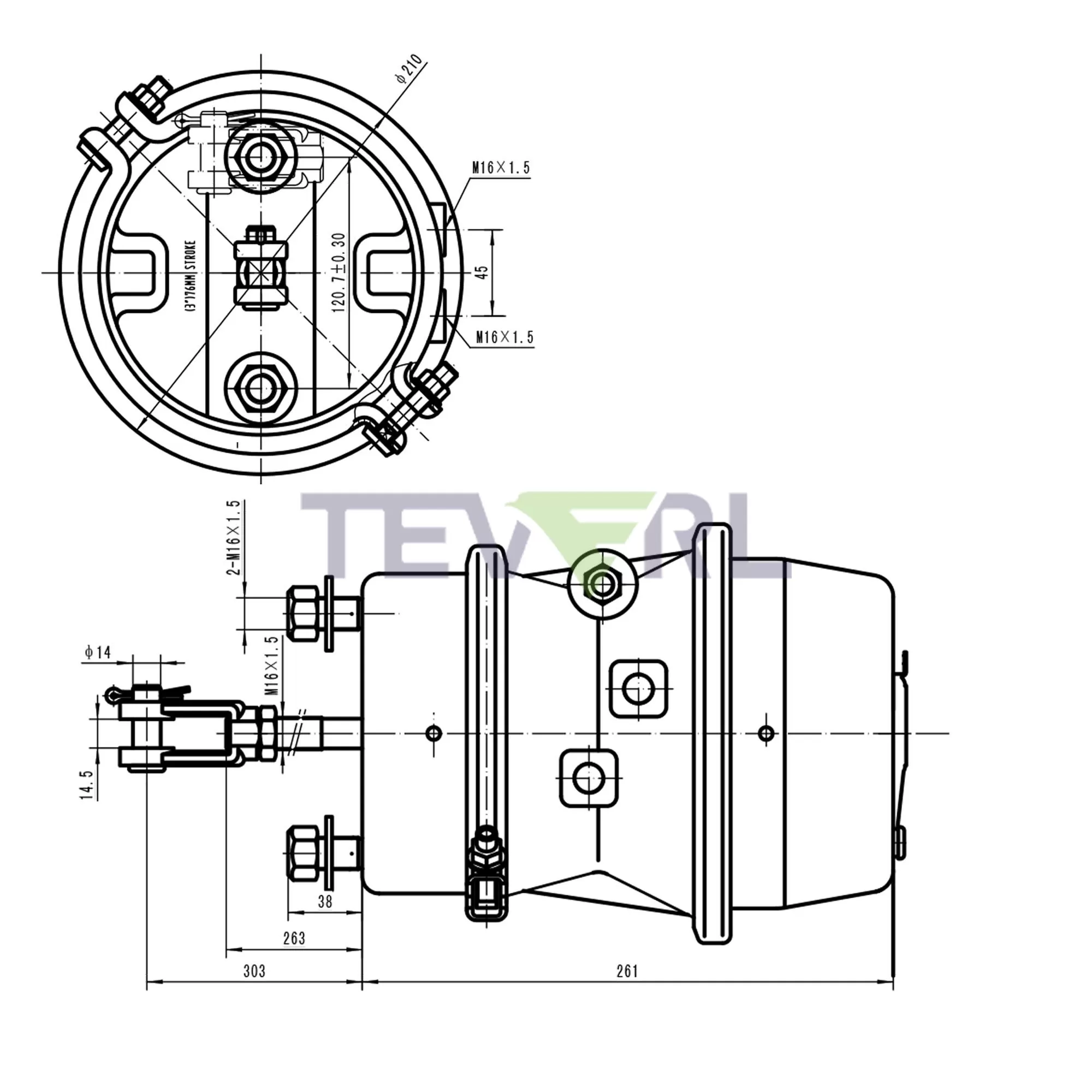

30102010 T24/30 Spring Brake Chamber 75/75mm

30102010 T24/30 Spring Brake Chamber 75/75mm

Fits T24/30 Spring Brake Chamber 75/75mm

Part#30102010
Air InletM16*1.5
Bolt ThreadM16*1.5
Bolt Center120.7±0.30 mm
Push Rod ThreadM16*1.5
Push Rod Length263 mm


Inquire Now Next Product
