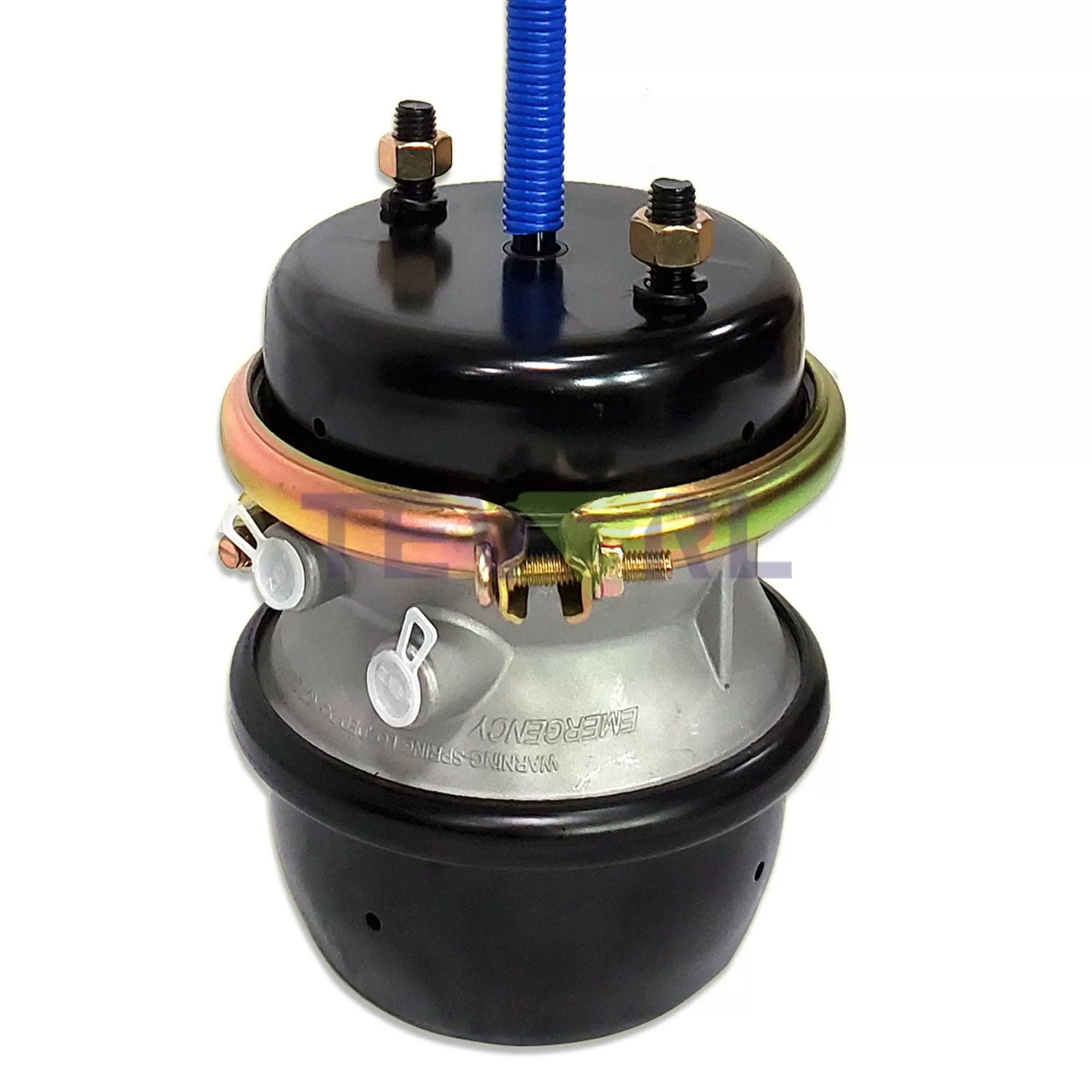

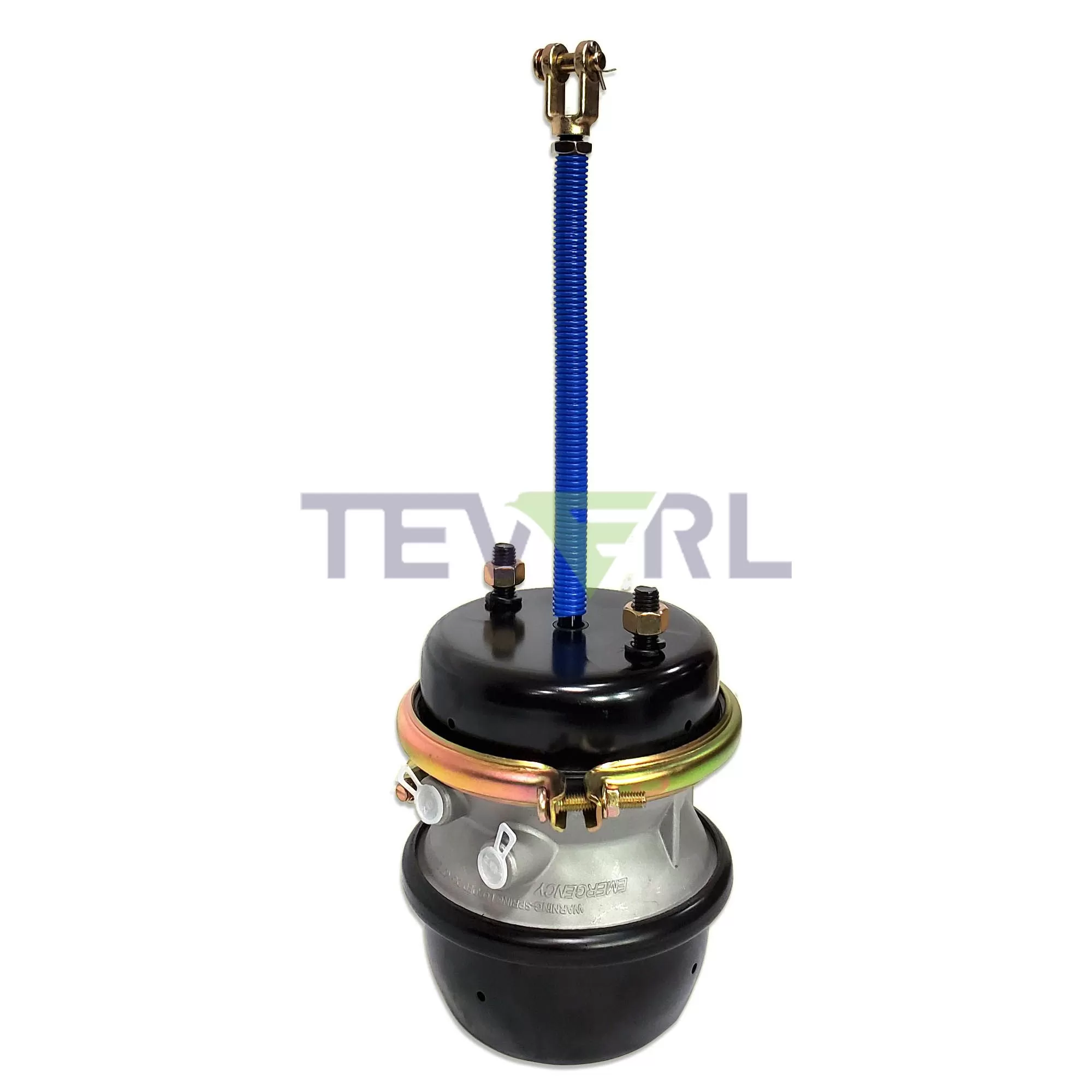

30102012 T30/30 Sealed Spring Brake Chamber

30102012 T30/30 Sealed Spring Brake Chamber

Fits T30/30 Sealed Spring Brake Chamber

Part#30102012

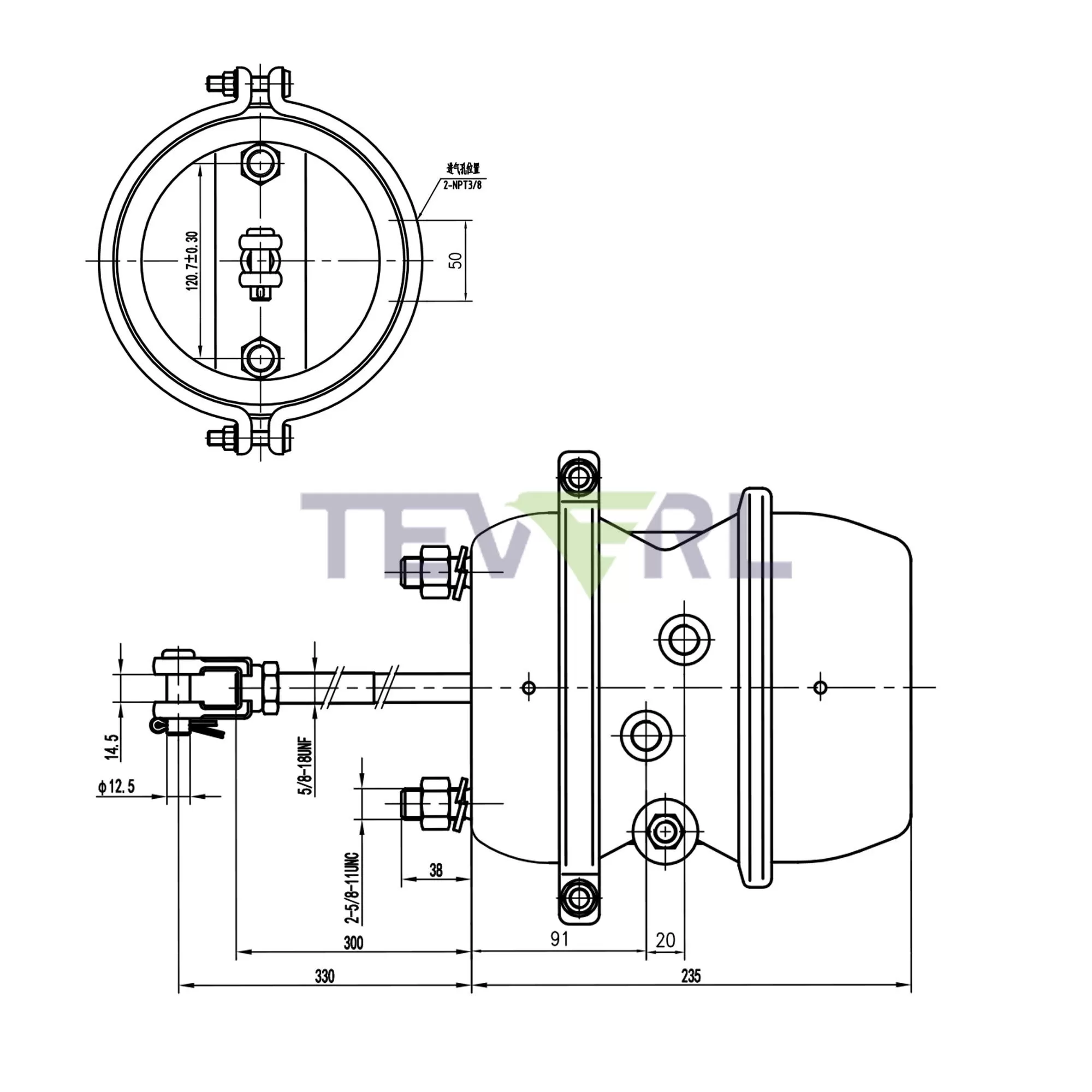

Air Inlet ThreadNPT3/8
Bolt Thread5/8-11UNC
Bolt Center120.7±0.30 mm
Push Rod Thread5/8-18UNF
Push Rod Length300 mm


Inquire Now Next Product
